This is a very popular tutorial for beginners. In this detailed tutorial we will learn a technique for creating a realistic wine glass using an Editable Spline and a Lathe Modifier. 3DS Max Spline Modeling A Glass Video TutorialFirst we need to change the Units Setup to Centimeters. We can do this by clicking on Customize on the Top toolbar and select Units Setup from the menu. In the Units Setup Dialog – Display Unit Scale, choose In the Perspective viewport let's turn on Edged Faces. We can press F4 on the keyboard or right click on the word Realistic in the left cornerThis will enable us to see all the subdivisions in our We are going to create a Plane first as a reference point to draw out the exact size and shape of the glass. So go over to the Create Panel – Geometry and select Plane. Drag out a Plane in the center of Front viewport. Then go to the Modify Panel, in Parameters type in Length 16cm, Width 7cm, and Length and Width Segs 4.

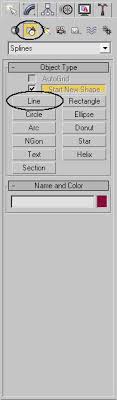

Press Z on the keyboard to zoom in. Let's maximize the Front Viewport to draw out the shape of the glass. All we have to do is press ALT W on the keyboard. Now we can go over to the Create Panel – Shapes – Splines, in Object Type select Line then turn We are going to draw out the outline of half a glass on the Plane then add a Lathe Modifier. We do not need to create a lot of vertices for thisfood and wine best chef 2014 shape, but it is important that they are placed in the same position aswhat kind of wine goes best with turkeyWe will start at the bottom left corner. the best soft red wineClick to drop the firstbest wine textbooks

vertex (the first vertex is always yellow) then hold the shift key down on the keyboard to draw a straight line and drag the Line to the right and click again in the middle of the Plane. Don't press the Shift key now and draw out the top outline of the base of the the glass. key down to drag the Line straight up for the stem of the glass, click and drop an other vertex. Carry on drawing the outline, the last vertexbest wines under 10 bc must be place precisely above the first vertex. buy german wine ukRight click after placing the last vertex to turn off the Line. Let's go over to the Modify Panel, and choose Segment Sub-Object mode. With the Select and Move tool you can adjust the width of the outline. Go to the Vertex Sub-Object mode, and select the two vertices at the Top of the glass and zoom in.

Scroll down the panel to Geometry, and pressClick on a vertex and drag the cursor up. vertices will disappear and they will be replace with two new ones and Select the two vertices in the center of the curve,(there should be one on top of the other like in the image) and in the Geometry panel press Weld to weld them together. Let's go to the inner vertex inside the glass, right click on the vertex and from the Tools 1 menu choose Bezier. Move the Tangents on the vertex slightly until you get a smooth curve. Now we can select the vertex at the top of the stem and press the FilletClick on the vertex and move the cursor to create a curve. same to the vertex at the other end of the stem. Right click on the vertex on the base of the glass and choose Smooth from the Tools 1 menu, then move the vertex so you get a nice even curve. We can now go back to the middle vertices on the side of the glass. both of the vertices, right click and select Smooth from the Tools 1 menu.

Pull the vertices slightly to the side, creating a smooth curve. one of the vertices so they are closer together. Make sure there are no Back over to the Modify panel and click on the name Line to turn off theNow from the Modifier List, scroll down under Object-Space Modifiers and select the Lathe modifier. We will see how the Lathe Modifier rotates around the object. a few of the settings. In Parameters, turn on Weld Core, Segments set to 32, and in Align press Min. We can delete the Plane now, and let's have a look at the glass. not happy with the result you can easily make some adjustments. Show End Result On/Off Toggle, then go back into the Line Sub-Object mode - Vertex mode and move the vertices and at the same time you can see howWhen you're happy with the result you can right click and in the Transform menu select Convert To Editable Poly. All you need to do now is add some Glass material. I hope you have found this tutorial helpful and can apply this technique

Make a Realistic Wine Glass in 10 Minutes using 3D Studio Max Creating something in 3D Max is a tough job. Creating a realistic 3D graphic is harder than creating a realistic 3D graphic within 10 minutes. Now that is something, isn’t it?. And that is exactly what I’ll be teaching you today. How to make a realistic Wine Glass in just 10 minutes with the help of 3D Studio Max. Simply enter your email address and the download link will be sent right to your inbox. If you did not get an email please check your junk folder. Click on the shapes button and then select the Line button to activate the line command. Draw a line in the front view port like this. Select second vertex from the top. Right click the selected vertex and choose Smooth. Then select other bottom vertex as shown in the picture below. Now use the Fillet command to get this result. Next, apply lathe modifier and click the Min button from Align group. You will  have this type of shape.

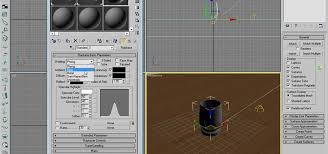

You may use F3 and F4 for wire frame and shaded view. Apply Shell modifier for glass thickness. You may change outer amount to modify it further. Now you can see your wine glass first gray version. Now it’s time to switch to your V-ray renderer – press F10… …and choose V-ray as the default renderer. Draw a V-ray plane and put some floor material on it. Press M to activate material editor and choose V-ray material. Set Reflect color to R=22, G=22, B=22 Set Refrect color to R=255, G=255, B=255 Set max Depth to 10 in both reflect and refract options. Turn on reflect on back side in options group. Click on background to view your glass material. Place two V-ray lights like this and set the multiplier to 45.Now press F10 and turn on indirect illumination and set irradiance value to very low. After first render you can increase the value to get a better result. I have added some water drops made with sphere and a teapot for more details.
